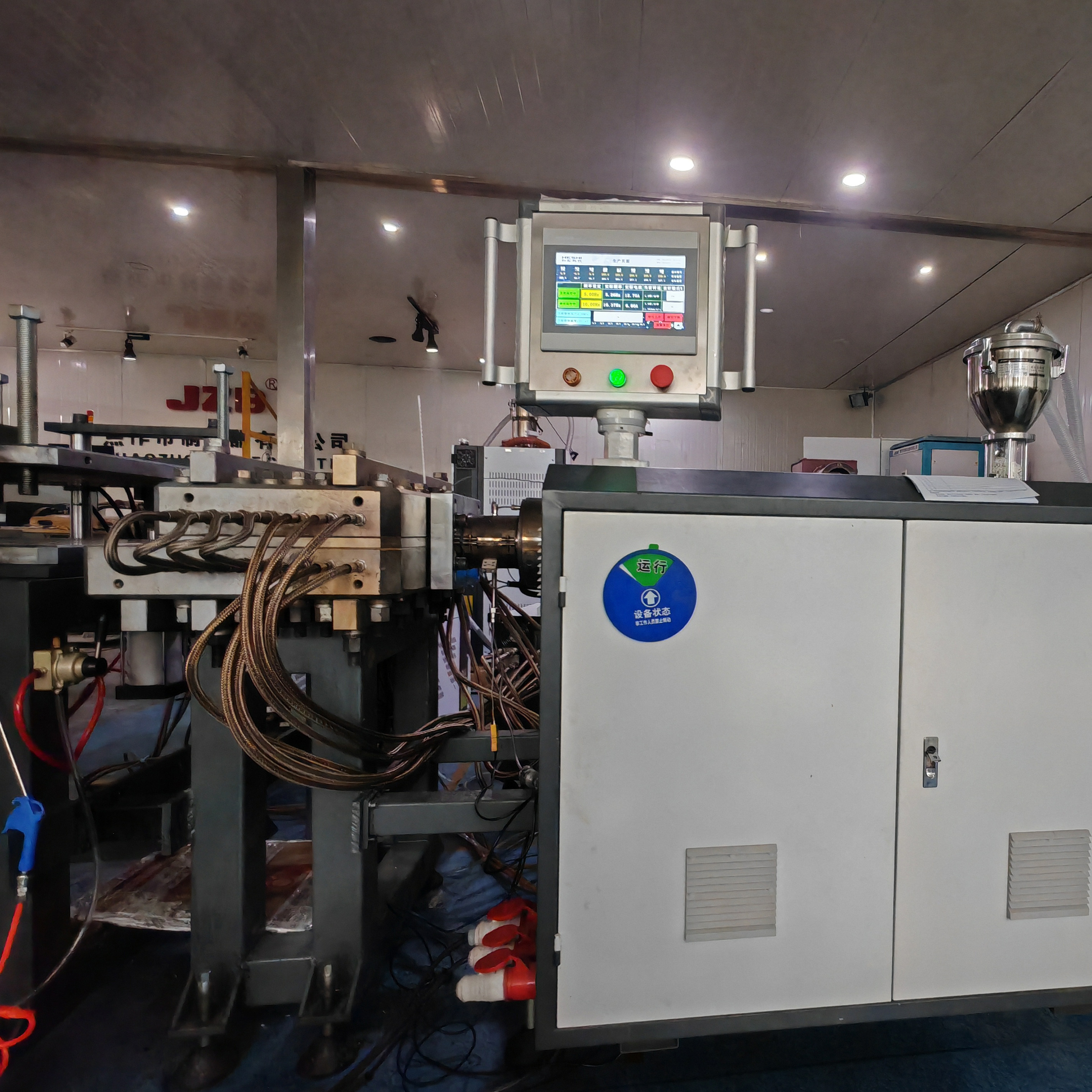

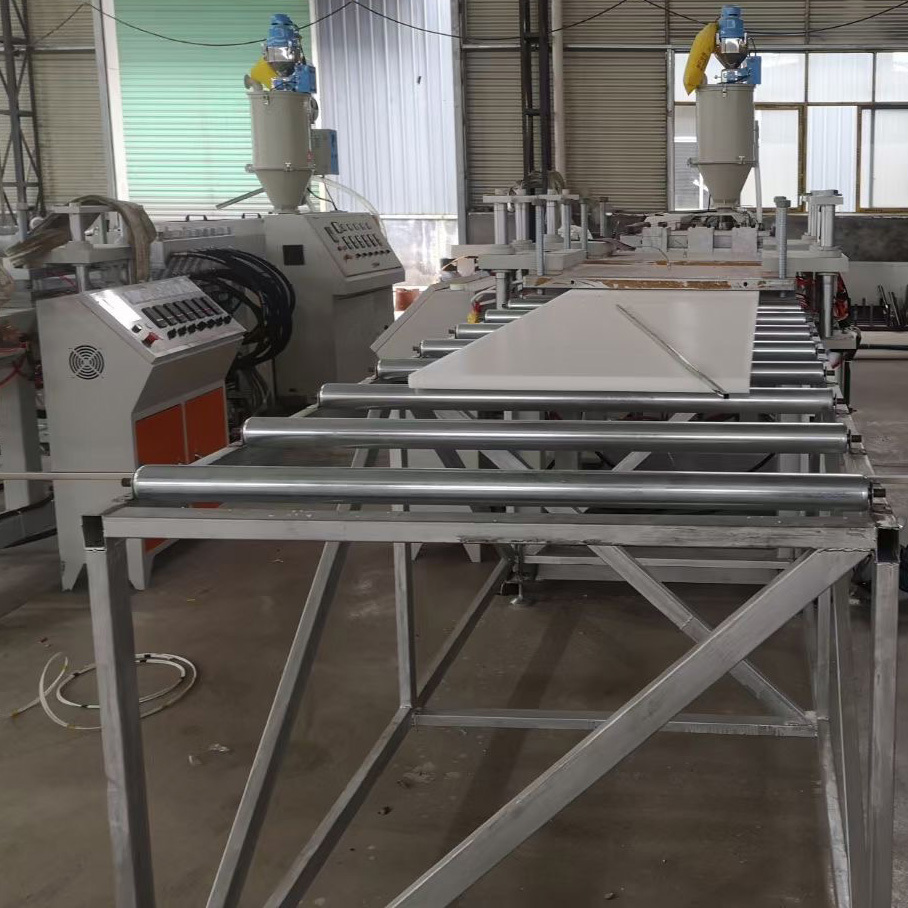

Polymer thick plate machine production line

No.SXSJ25/30/35/40/45 Polymer extruder
      • Applicable materials: PPS PEEK PE1000
      • Design output: 6-12kg/hour
      • Production line voltage: 3-phase 380V 50Hz
      • Wire reference: 3 * 16+1 * 2.5+1 * 1.5
      • Design power: 35-80 kW
      • Production energy consumption: 30-70 kW/hour
      • Suitable width: 150-600 mm
      • Suitable thickness: 8-30 mm
      • Production line length: 12000 * 1000 * 1800 mm
  • Polymer thick plate machine production line
  • Polymer thick plate machine production line
  • Polymer thick plate machine production line
  • Polymer thick plate machine production line
  • Polymer thick plate machine production line

Description

Product Overview :
  • The flat double granulator and color masterbatch granulator, as outstanding players in the modern plastic processing industry, have won widespread recognition and praise in the market for their excellent performance and wide application fields.
  • These two devices not only represent the latest technological achievements in the industry, but also provide strong support for the production of plastic pellets and masterbatch with their high efficiency, energy saving, and stability.
Functional Features and Advantages :
  • Efficient production to meet demand
  • Efficient production: Both the flat twin granulator and the masterbatch granulator adopt advanced twin-screw extrusion technology, effectively improving production efficiency. The optimized screw design ensures uniform mixing and efficient melting of materials inside the barrel, thereby achieving high output, meeting the needs of large-scale production lines, and reducing production costs per unit product.
  • Low energy consumption, green and environmentally friendly
  • Energy conservation and consumption reduction: We are well aware of the importance of energy consumption in production costs, so we pay special attention to energy efficiency improvement in our design. These two devices have significantly reduced energy consumption by more than 20% compared to traditional models through measures such as optimizing the heating system and improving the transmission structure, which is in line with the green development concept of modern enterprises.

Stable operation, ensuring production continuity:
  • Stable and reliable: The flat double granulator and color masterbatch granulator have fully considered operational stability in their structural design, using high-quality materials and precise manufacturing processes to ensure that the equipment can maintain excellent performance even under long-term and high load operation. At the same time, the equipped intelligent monitoring system can monitor the status of equipment in real time, detect and handle potential problems in a timely manner, and ensure the continuous and stable operation of the production line.
  • Strong applicability, meeting diverse needs
  • Widely applicable: Both devices can easily handle the production of hard plastics, soft plastics, and various color masterbatch. Its flexible mold replacement system and adjustable process parameters enable the equipment to adapt to production needs of different materials, formulas, and specifications, providing customers with great convenience and flexibility.

Epilogue:

The flat double granulator and color masterbatch granulator have become ideal choices in the plastic processing industry due to their significant advantages such as high production efficiency, low energy consumption, stable operation, and strong applicability. They can not only significantly improve production efficiency, but also provide customers with more flexible and diverse production solutions. Choosing a flat double granulator and a masterbatch granulator is choosing an efficient, energy-saving, and stable future. We look forward to working together with you to create a brilliant tomorrow for the plastic processing industry!
Equipment Introduction
 Dehumidification and drying integrated machine
      • Material: Stainless steel
      • Capacity: 200kg
      • Conveyor motor power : 2.2kw
      • Push motor power : 2.2kw
      • Transmission method: Chain transmission
Single-screw extruder
      • Design Power: 130 kW
      • Design Output: 800-1200kg/Hr
      • Motor Power:115 kW
      • Heating Power:55 kW
      • Production energy consumption:180 kW/Hr
      • Extrude Size:6300*1800*2000mm
      • Unit Weight:5600kg

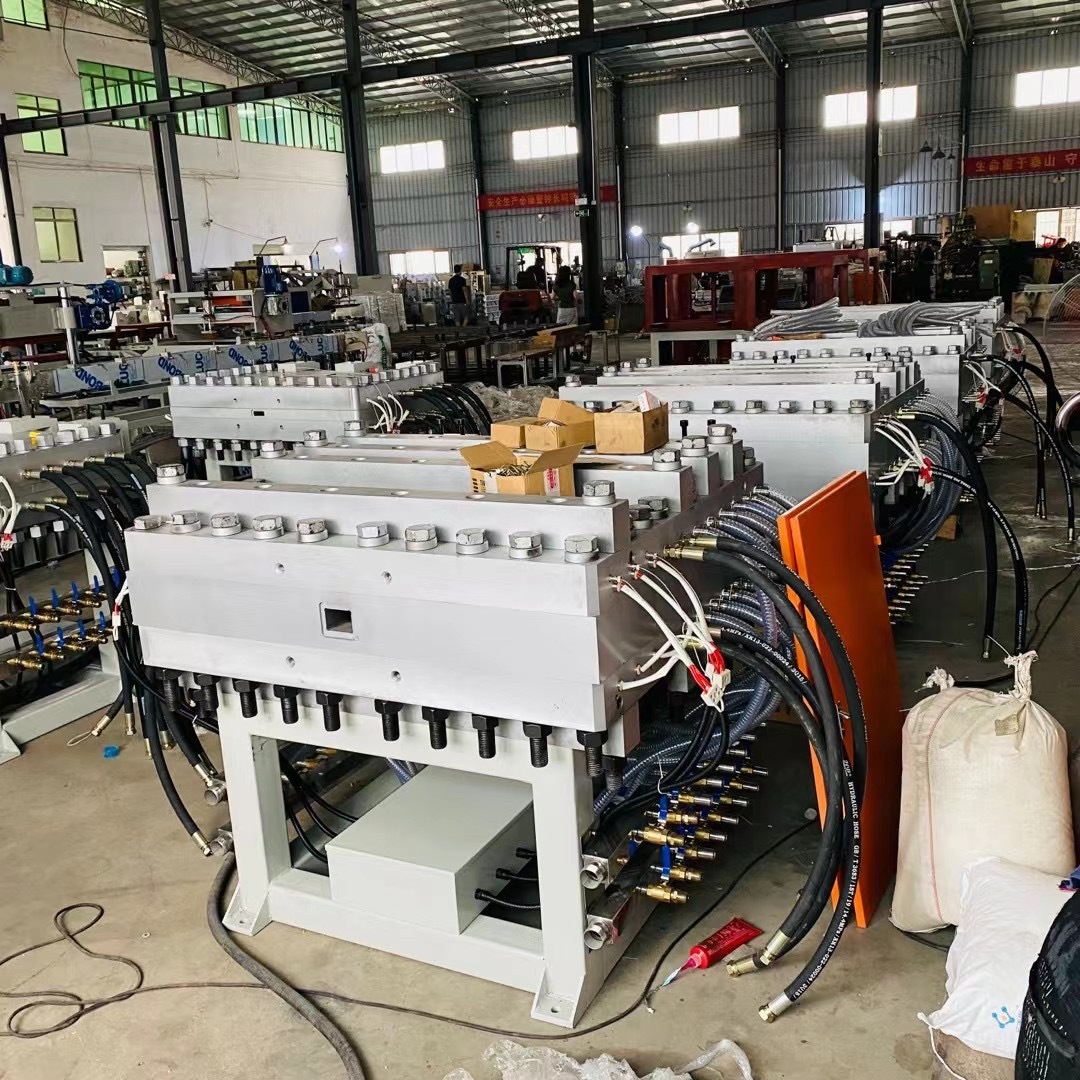

Thick plate T-Die
      • Material: Special Steel
      • Heating method: electric heating
      • Heating power: 32kW
      • Product width: 200-600
      • Product thickness: 8-50mm
      • Mold weight: 400-900kg
      • Mold size: 1200 * 800 * 1300mm

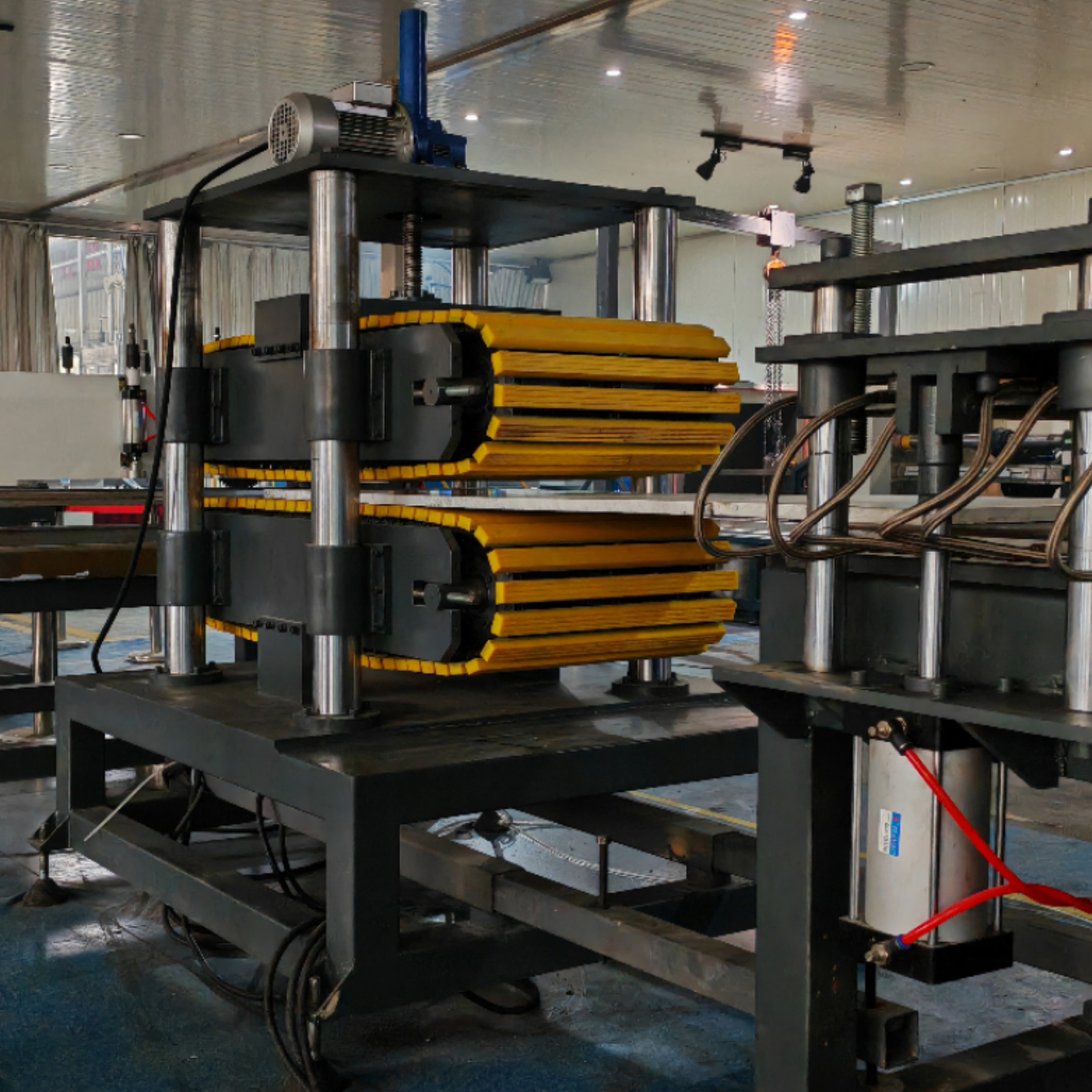

Damping traction machine
      • High wear resistance coefficient
      • Control mode: frequency converter or servo
      • Motor power: 1.5-4kW
      • Controller brand: Delta, Huichuan or others
      • Traction speed: 0.0003-0.1 meters per minute
      • Equipment size: 12000 * 800 * 1700
      • Equipment weight: 3000kg

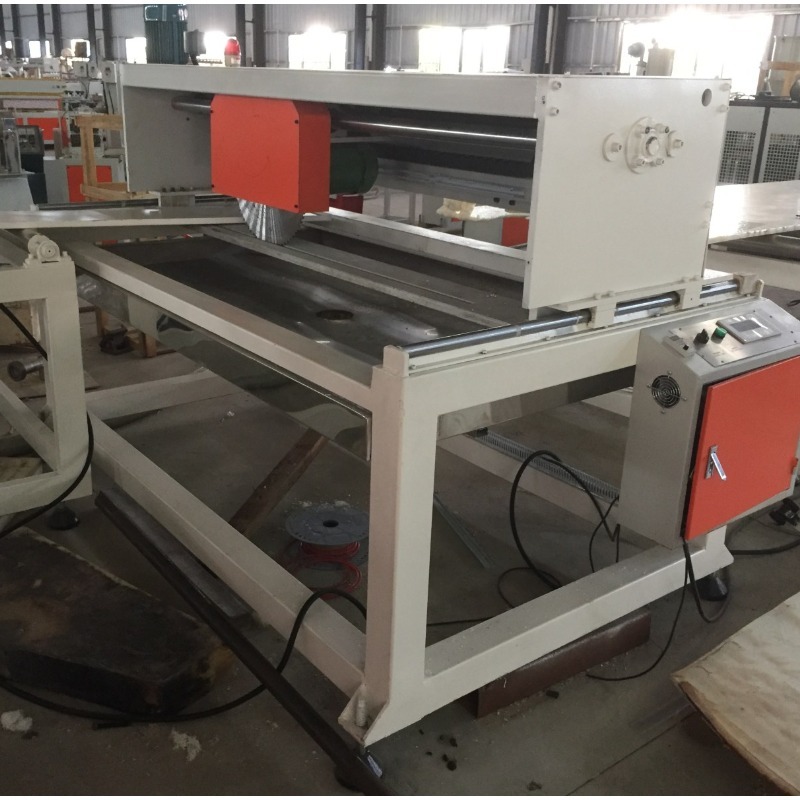

Thick plate cutting machine
      • Motor power: 2.2-7 kW
      • Control method: Variable frequency control
      • Cutting speed: adjustable
      • Return speed: adjustable
      • Watering device: standard configuration
      • Cylinder components: domestic brand
      • Saw blade: Choose according to size
      • Machine width: 800-3200mm
      • Machine weight: 680kg
